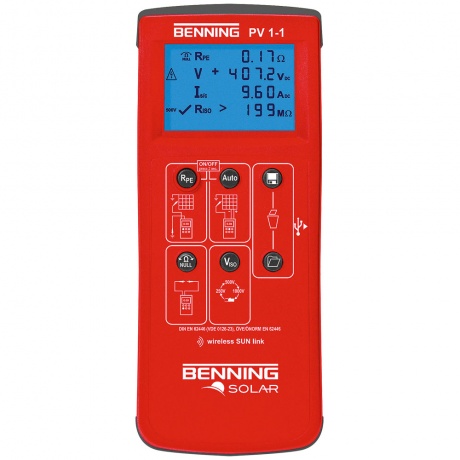

Photovoltaic Installation Tester BENNING PV 1-1

BENNING PV 1-1
indication graphic display
protective conductor resistance 0.05 Ω – 199 Ω
testing current ± 200 mADC
open circuit voltage 5 V – 1000 VDC
short-circuit current 0.5 A – 14.99 ADC
insulation resistance 0.2 MΩ – 199 MΩ
testing voltage 250 V, 500 V, 1000 VDC
load current 0.1 A – 40 AAC/DC (by means of clamp)
measured value memory 200 data record
interface USB

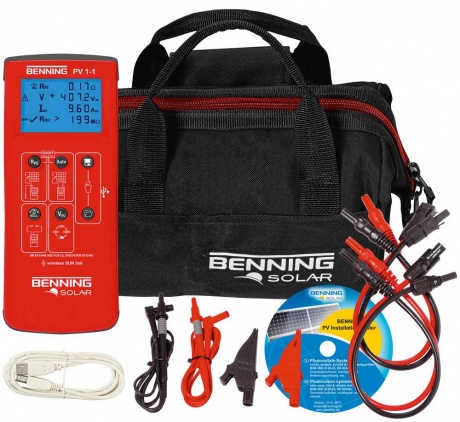

scope of delivery carrying case, measuring leads, crocodile clips, MC4 measuring leads , sunclix measuring leads, batteries, CD-ROM with download software
item no. 050421
